APPLICATION:

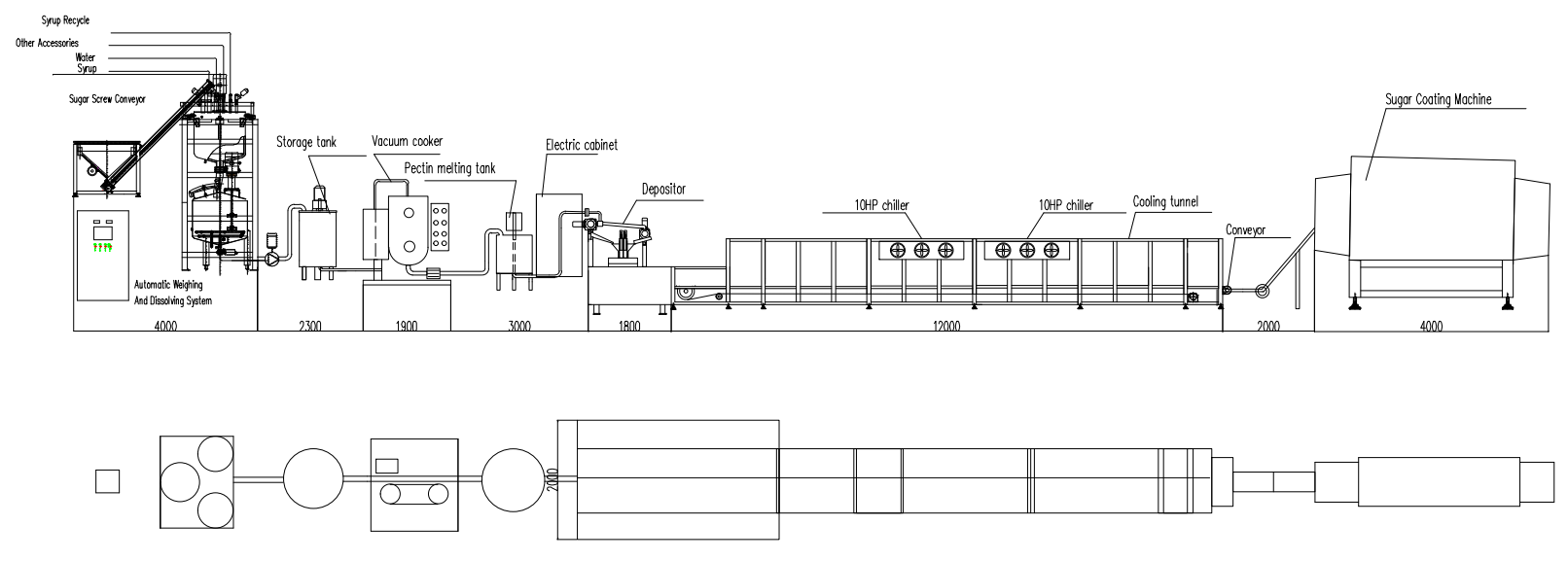

The jelly candy depositing production line with servo system .It is the most advanced equipment for produce jelly candy ,gummy candy , It can be produce single color jelly candy, two color jelly candy and jelly candy with center filling .The jelly candy depositing production line with servo system has high quality ,high output and it can be produce high quality jelly candy . The jelly candy depositing production line with servo system consists of sugar dissolving tank, syrup pump,storage tank with filter system,gummy candy vacuum cooker, Depositing machine with cooling tunnel . We install 2units chiller on top of cooling tunnel to make sure the best cooling effect.
The jelly candy depositing production line with servo system and control the each action through Intelligent motion control card to Achieve accurate candy depositing and high performance of equipment .
Technical Details:
| Model | YL-JCM-I | YL-JCM-II | YL-JCM-V | YL-JCM-V |
| Capacity | 150kg/h | 300kg/h | 450kg/h | 600kg/h |
| Power | 30kw | 45kw | 60kw | 75kw |
| Air Consumption | 0.5m3/min | 0.5m3/min | 0.5m3/min | 0.5m3/min |
| Steam Consumption | 450kg/h | 450kg/h | 450kg/h | 450kg/h |
| Steam Pressure | P<0.7Mpa | P<0.7Mpa | P<0.7Mpa | P<0.7Mpa |
| Water Consumption | 2200L/h | 2200L/h | 2200L/h | 2200L/h |
| Humidity | 55% | 55% | 55% | 55% |
| Dimension | 1600X1500X2700mm | 1600X2000X2700mm | 1600X2360X2700mm | 1600X2720X2700mm |
| Weight | 6000kg | 7500kg | 8500kg | 9500kg |
